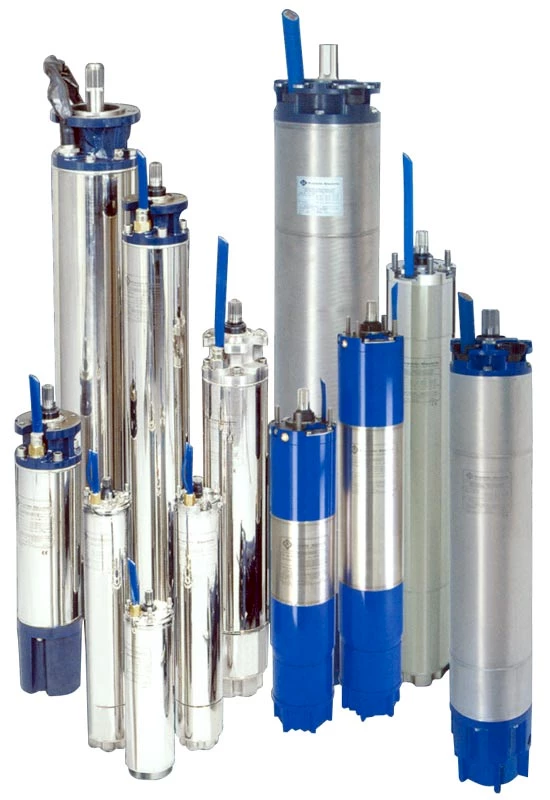

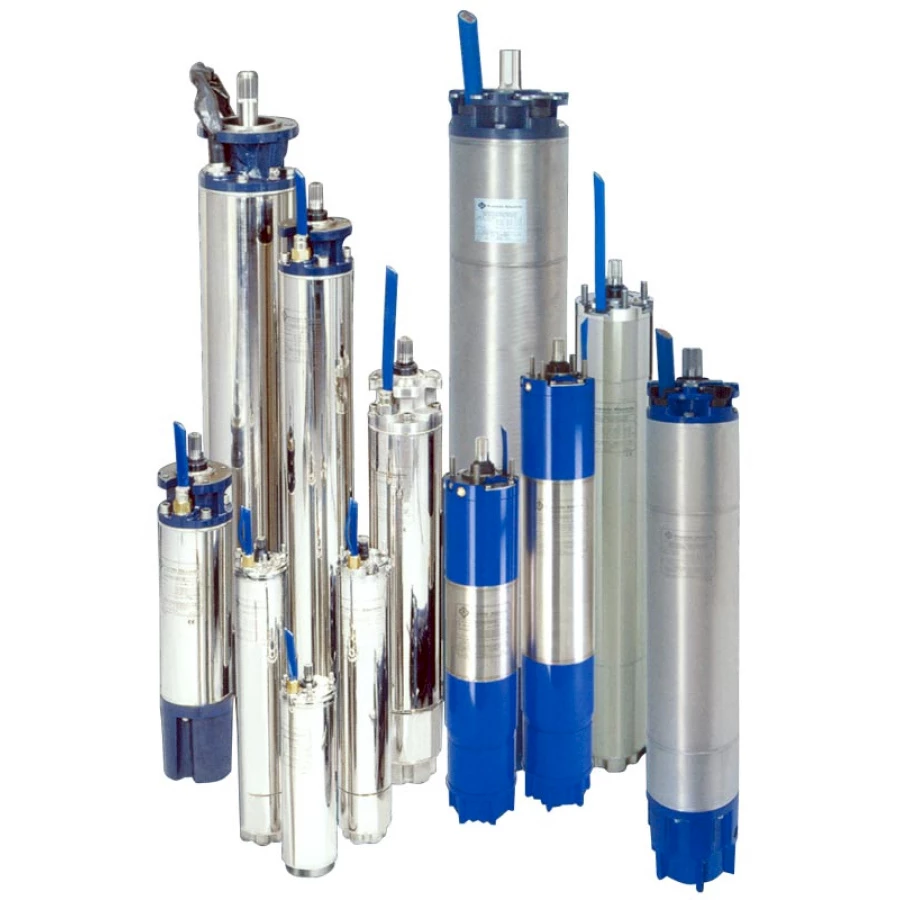

Franklin Electric 8" Rewindable Motors are the quality drive for your submersible pump. Water lubricated thrust and radial bearings offer you a maintenance free long life submersible motor operation.
• Easy to assemble with double flange • Leads material according to drinking water regulations (KTW approved) • SiC shaft seal for maximum sand protection • High efficiency electrical design for low operation cost • All motors prefilled and 100% tested. • Max. storage temperature -15°C - + 60°C • Design for retrofitable PT100 sensor • Non contaminating, FES 93 filling • Stator material 316 SS
• 8" NEMA flange • Protection: IP 68 • Starts per hour: max. 10 • Installation position: vertical / horizontal 93 kW motors may not be installed horizontally. • Motor Lead in 6 m length (KTW approved) • Standard voltage: 380-415V/50Hz, 460V60Hz • Voltage tolerance: +6% / -10% (Standard: 415 + 6% = 440V, 380 – 10% = 342V) • Motor protection: Select thermal overloads according to EN 60947-4-1, trip class 10 or 10A, trip time < 10 s. at 5 x IN • Standard motor with PVC winding insulation for max. ambient temp. of 30ºC with a min.cooling flow: 30 kW - 52 kW v = 0,2 m/s 55 kW - 93 kW v = 0,5 m/s
